How to install Cozystack in Servers.com

Before Installation

1. Network

Remove Aggregate Interface
1. Go to Dedicated Server > Server Details, and click the second column (highlighted in blue) to remove the aggregate interface.
2. Ensure the status appears as shown in the screenshot.
Set Up L2 Network
1. Navigate to Networks > L2 Segment and click Add Segment.
  First, select Private, choose the region, add the servers, assign a name, and save it.

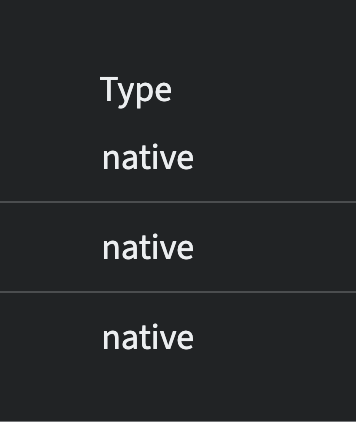

2. Set the type to Native. Do the same for Public.

2. Access

Create SSH keys for server access.
Go to Identity and Access > SSH and Keys.
Create new keys or add your own.

Setup OS

1. Rescue Mode / Access

Go to Dedicated Servers > Server Details, and click Reboot to Rescue. Select your SSH key.
Connect via SSH. Log in via SSH using the external IP of the server (Details > Public IP ).

2. Setup

Check the information on block devices:

# lsblk
NAME    MAJ:MIN   RM   SIZE     RO   TYPE   MOUNTPOINTS
sda     259:4     0    476.9G   0    disk
sdb     259:0     0    476.9G   0    disk

Wipe disks.

:warning: The following commands will erase your data!

wipefs -a /dev/sda
wipefs -a /dev/sdb

Install kexec-tools:
```
dnf install kexec-tools -y
```

Download kernel and initramfs:

wget -O /tmp/vmlinuz https://github.com/cozystack/cozystack/releases/latest/download/kernel-amd64
wget -O /tmp/initramfs.xz https://github.com/cozystack/cozystack/releases/latest/download/initramfs-metal-amd64.xz

Set environment variables:

INTERFACE=$(ip -o link show | grep 'master bond0' | grep -m1 'state UP' | awk -F': ' '{print $2}')
INTERFACE_NAME=$(udevadm info -q property "/sys/class/net/$INTERFACE" | grep "ID_NET_NAME_ONBOARD=" | cut -d'=' -f2)
IP_CIDR=$(ip addr show bond0 | grep "inet\b" | awk '{print $2}')
IP=$(echo $IP_CIDR | cut -d/ -f1)
NETMASK=$(ipcalc -m $IP_CIDR | cut -d= -f2-)
GATEWAY=$(ip route | grep default | awk '{print $3}')

Set CMDLINE, and echo it to verify:

CMDLINE="init_on_alloc=1 slab_nomerge pti=on console=tty0 console=ttyS0 printk.devkmsg=on talos.platform=metal ip=${IP}::${GATEWAY}:${NETMASK}::${INTERFACE_NAME}:::::"
echo $CMDLINE

3. Boot into Talos

Load the kernel and initramfs:

kexec -l /tmp/vmlinuz --initrd=/tmp/initramfs.xz --command-line="$CMDLINE"

Boot into the new kernel:
```
kexec -e
```

After executing the command, the system will reboot into the new kernel. Your SSH session will stop responding, and the server will reboot.

Wait for around 5 minutes for the system to boot.

Talos Configuration

Use Talm to apply config and install Talos Linux on the drive.

Download the latest Talm binary and save it to /usr/local/bin/talm
Make it executable:
```
chmod +x /usr/local/bin/talm
```

Installation with Talm

Create directory for the new cluster:
```
mkdir -p mycluster
cd mycluster
```
Run the following command to initialize Talm for Cozystack:
```
talm init -p cozystack
```
After initializing, generate a configuration template with the command:
```
talm -n 1.2.3.4 -e 1.2.3.4 template -t templates/controlplane.yaml -i > nodes/nodeN.yaml
```

Edit the node configuration file as needed.

Update hostname to the desired name.

machine:
  network:
    hostname: node1

Update nameservers to the public ones, because internal servers.com DNS is not reachable from the private network.
```
machine:
  network:
    nameservers:
      - 8.8.8.8
      - 1.1.1.1
```

Add private interface configuration, and move vip to this section. This section isn’t generated automatically:

busPath - Obtained from the “Discovered interfaces busPath” by matching the MAC address of the private interface specified in the provider’s email. (Out of the two interfaces, select the one with the uplink).
addresses - Use the address specified for Layer 2 (L2).

Example:

matching:
  network:
    interfaces:
      - deviceSelector:
          busPath: "0000:03:00.1"
        addresses:
          - 1.2.3.4/29
        routes:
          - network: 0.0.0.0/0
            gateway: 1.2.3.1
      - deviceSelector:
          busPath: "0000:03:00.0"
        addresses:
          - 192.168.100.11/24
        vip:
          ip: 192.168.100.10

Execution steps:

Run talm apply -f nodeN.yml for all nodes to apply the configurations. The nodes will be rebooted and Talos will be installed on the disk.
Make sure that talos get installed into disk by executing talm get systemdisk -f nodeN.yml for each node. The output should be similar to:
```
NODE      NAMESPACE   TYPE         ID            VERSION   DISK
1.2.3.4   runtime     SystemDisk   system-disk   1         sda
```
If the output is empty, it means that Talos still runs in RAM and hasn’t been installed on the disk yet.
Click Exit rescue mode for each node in the Servers.com panel. The nodes will reboot again.
Execute bootstrap command for the first node in the cluster, example:
```
talm bootstrap -f nodes/node1.yml
```

Get kubeconfig from the first node, example:

talm kubeconfig kubeconfig -f nodes/node1.yml

Edit kubeconfig to set the IP address to one of control-plane node, example:
```
server: https://1.2.3.4:6443
```
Export variable to use the kubeconfig, and check the connection to the Kubernetes:
```
export KUBECONFIG=${PWD}/kubeconfig
kubectl get nodes
```

Now follow Get Started guide starting from the Install Cozystack section, to continue the installation.
