Install Cozystack in Servers.com

Before Installation

1. Network

1. Set Up L2 Network

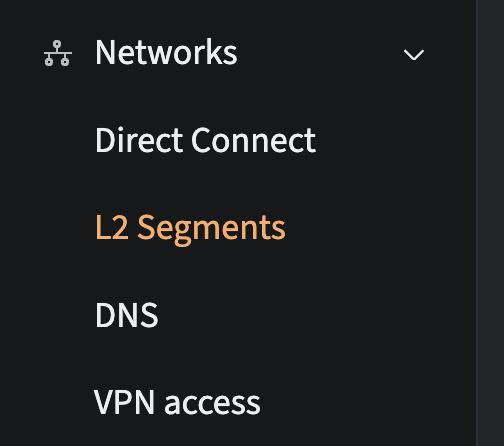

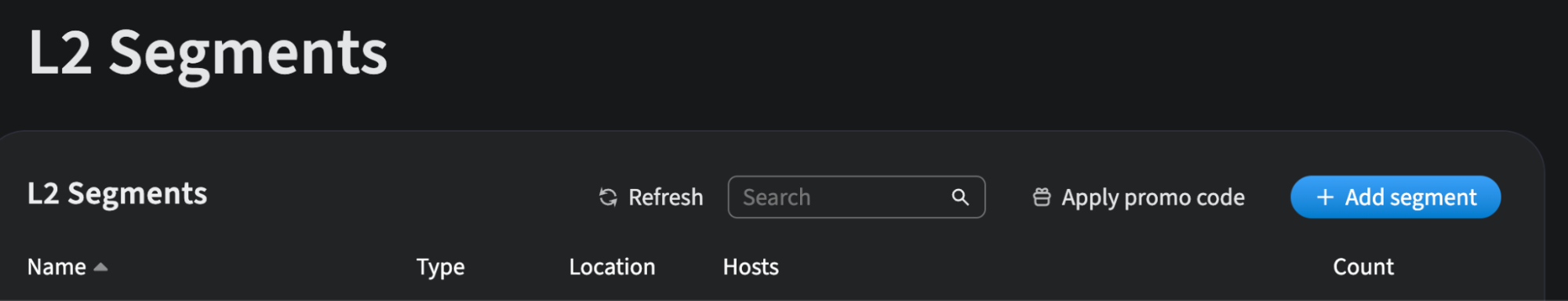

   1. Navigate to Networks > L2 Segment and click Add Segment.

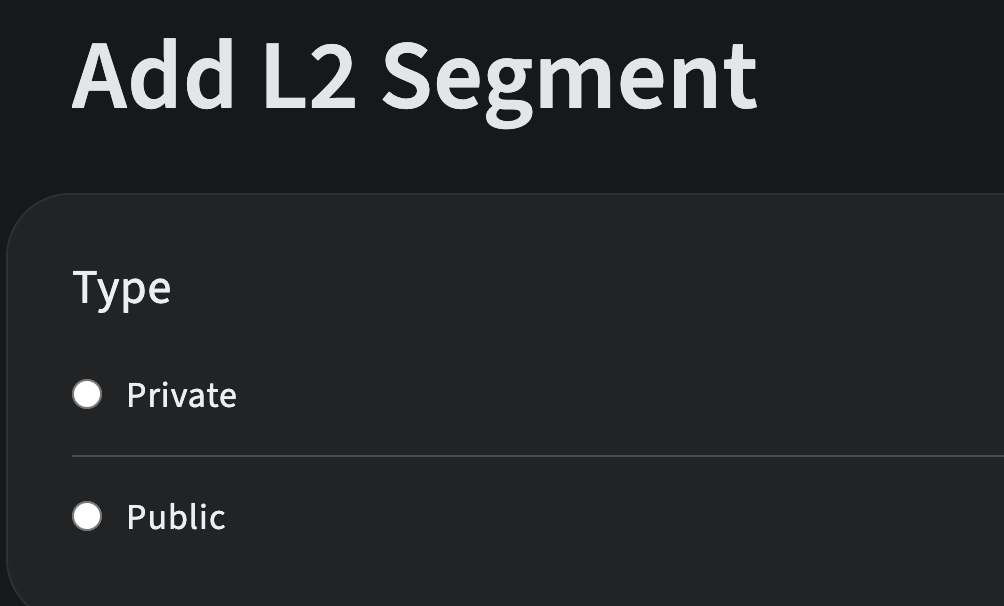

      First, select Private, choose the region, add the servers, assign a name, and save it.

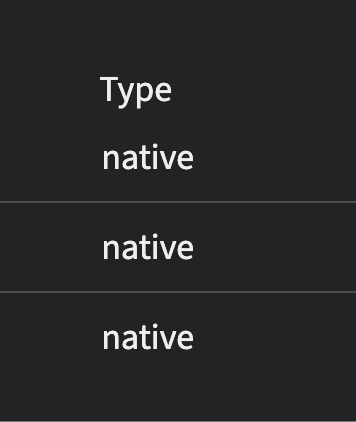

   2. Set the type to Native. Do the same for Public.



2. Access

1. Create SSH keys for server access.

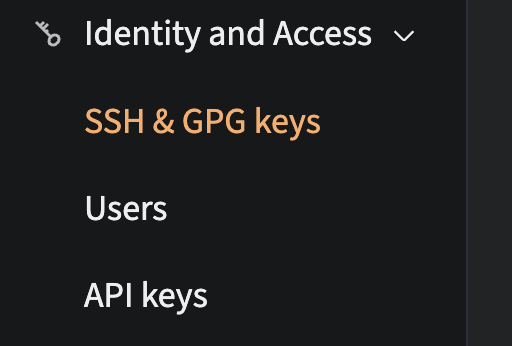

2. Go to Identity and Access > SSH and Keys.

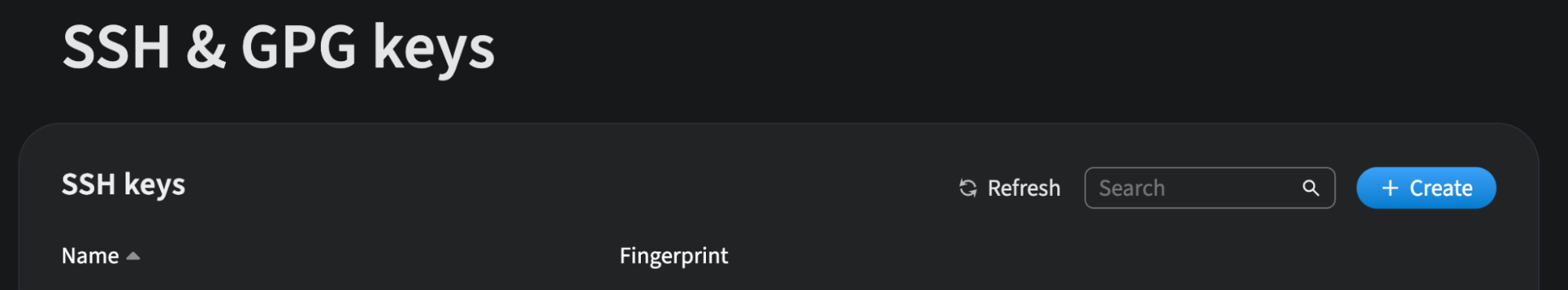

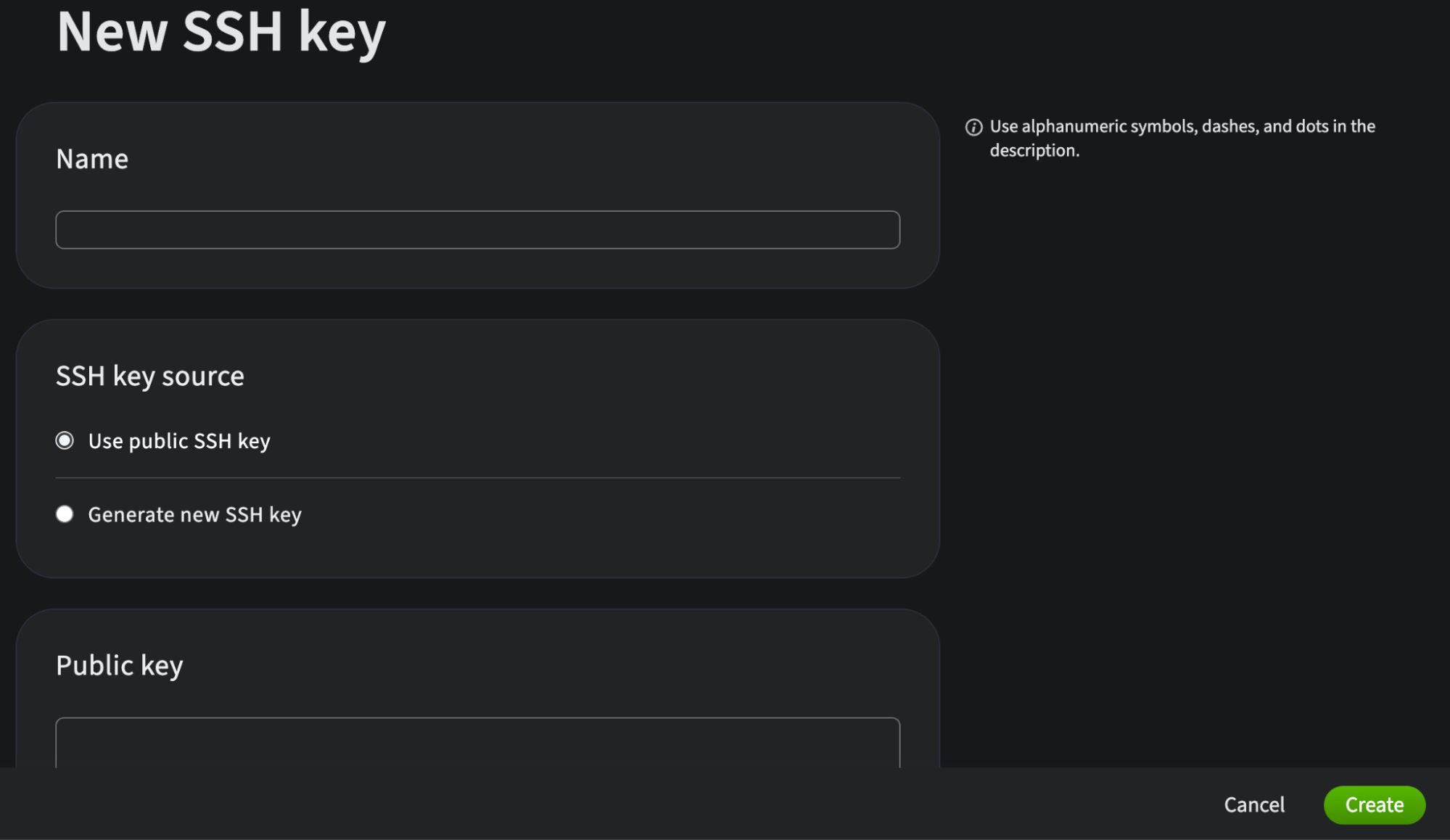

3. Create new keys or add your own.



Setup OS

1. Operating System and Access

1. In the Servers.com control panel, install Ubuntu on the server (for example via Dedicated Servers > Server Details > OS install) and make sure your SSH key is selected.

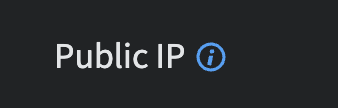

2. After the installation is complete, connect via SSH using the external IP of the server (Details > Public IP).



2. Install Talos with boot-to-talos

Talos will be booted from the installed Ubuntu using the boot-to-talos utility. Later, when you apply Talm configuration, Talos will be installed to disk. Run these steps on each server.

1. Check the information on block devices to find the disk that will be used for Talos later (for example, /dev/sda).

   # lsblk
   NAME    MAJ:MIN   RM   SIZE     RO   TYPE   MOUNTPOINTS
   sda     259:4     0    476.9G   0    disk
   sdb     259:0     0    476.9G   0    disk


2. Download and install boot-to-talos:

   curl -sSL https://github.com/cozystack/boot-to-talos/raw/refs/heads/main/hack/install.sh | sudo sh -s


   After installation, verify that the binary is available:

   boot-to-talos -h


3. Run the installer:

   sudo boot-to-talos


   When prompted:

   • Select mode 1. boot.
   • Confirm or change the Talos installer image (the default Cozystack image is suitable).
   • Provide network settings matching the public interface (bond0) and default gateway.

   The utility will download the Talos installer image and boot the node into Talos Linux (using the kexec mechanism) without modifying the disks.

   For fully automated installations you can use non-interactive mode:

   sudo boot-to-talos -yes


3. Boot into Talos

After boot-to-talos finishes, the server reboots automatically into Talos Linux in maintenance mode. Repeat the same procedure for all servers, then proceed to configure them with Talm.

Talos Configuration

Use Talm to apply config and install Talos Linux on the drive.

1. Download the latest Talm binary and save it to /usr/local/bin/talm

2. Make it executable:

   chmod +x /usr/local/bin/talm


Installation with Talm

1. Create directory for the new cluster:

   mkdir -p cozystack-cluster
   cd cozystack-cluster


2. Run the following command to initialize Talm for Cozystack:

   talm init --preset cozystack --name mycluster


   After initializing, generate a configuration template with the command:

   talm -n 1.2.3.4 -e 1.2.3.4 template -t templates/controlplane.yaml -i > nodes/nodeN.yaml


3. Edit the node configuration file as needed:

   1. Update hostname to the desired name.

      machine:
        network:
          hostname: node1


   2. Update nameservers to the public ones, because internal servers.com DNS is not reachable from the private network.

      machine:
        network:
          nameservers:
            - 8.8.8.8
            - 1.1.1.1


   3. Add private interface configuration, and move vip to this section. This section isn’t generated automatically:

      • interface - Obtained from the “Discovered interfaces” by matching the MAC address of the private interface specified in the provider’s email. (Out of the two interfaces, select the one with the uplink).
      • addresses - Use the address specified for Layer 2 (L2).

      machine:
        network:
          interfaces:
            - interface: bond0
              addresses:
                - 1.2.3.4/29
              routes:
                - network: 0.0.0.0/0
                  gateway: 1.2.3.1
              bond:
                interfaces:
                  - enp1s0f1
                  - enp3s0f1
                mode: 802.3ad
                xmitHashPolicy: layer3+4
                lacpRate: slow
                miimon: 100
            - interface: bond1
              addresses:
                - 192.168.102.11/23
              bond:
                interfaces:
                  - enp1s0f0
                  - enp3s0f0
                mode: 802.3ad
                xmitHashPolicy: layer3+4
                lacpRate: slow
                miimon: 100
              vip:
                ip: 192.168.102.10


Execution steps:

1. Run talm apply -f nodeN.yml for all nodes to apply the configurations. The nodes will be rebooted and Talos will be installed on the disk.

2. Make sure that talos get installed into disk by executing talm get systemdisk -f nodeN.yml for each node. The output should be similar to:

   NODE      NAMESPACE   TYPE         ID            VERSION   DISK
   1.2.3.4   runtime     SystemDisk   system-disk   1         sda


   If the output is empty, it means that Talos still runs in RAM and hasn’t been installed on the disk yet.

3. Execute bootstrap command for the first node in the cluster, example:

   talm bootstrap -f nodes/node1.yml


4. Get kubeconfig from the first node, example:

   talm kubeconfig -f nodes/node1.yml


5. Edit kubeconfig to set the IP address to one of control-plane node, example:

   server: https://1.2.3.4:6443


6. Export variable to use the kubeconfig, and check the connection to the Kubernetes:

   export KUBECONFIG=${PWD}/kubeconfig
   kubectl get nodes


Now follow Get Started guide starting from the Install Cozystack section, to continue the installation.
